Knife gate valve TV

Knife gate valve
TV

Compact transmitter isolation valve

Available size range:

DN 80 (3")

Product data sheet:

Knife gate valve TV

Discover more

Product information

About TV

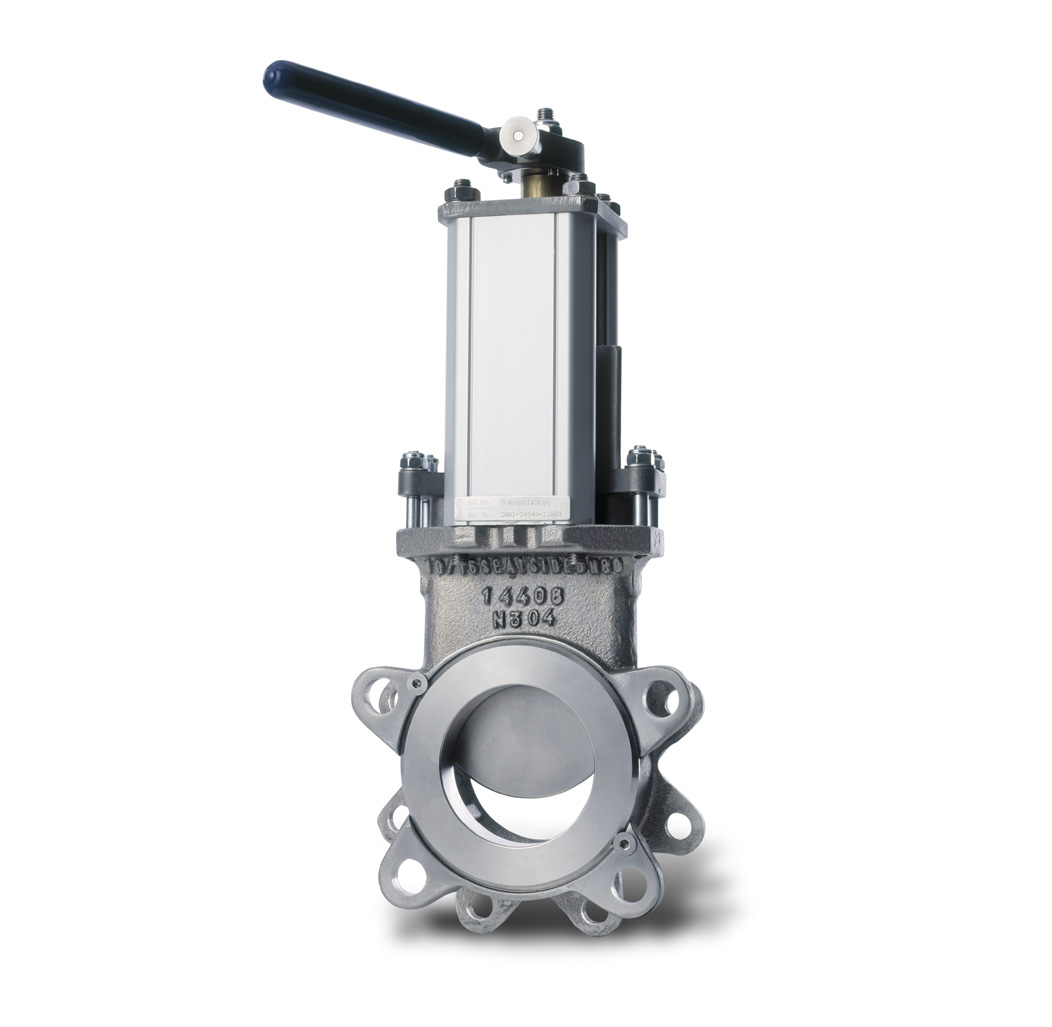

This is a transmitter isolation valve that can be used on both dry media and liquids. The compact design and unique flange pattern enable direct installation on the tank wall. Downstream transmitter or any other equipment can be disengaged and maintained without draining the tank.

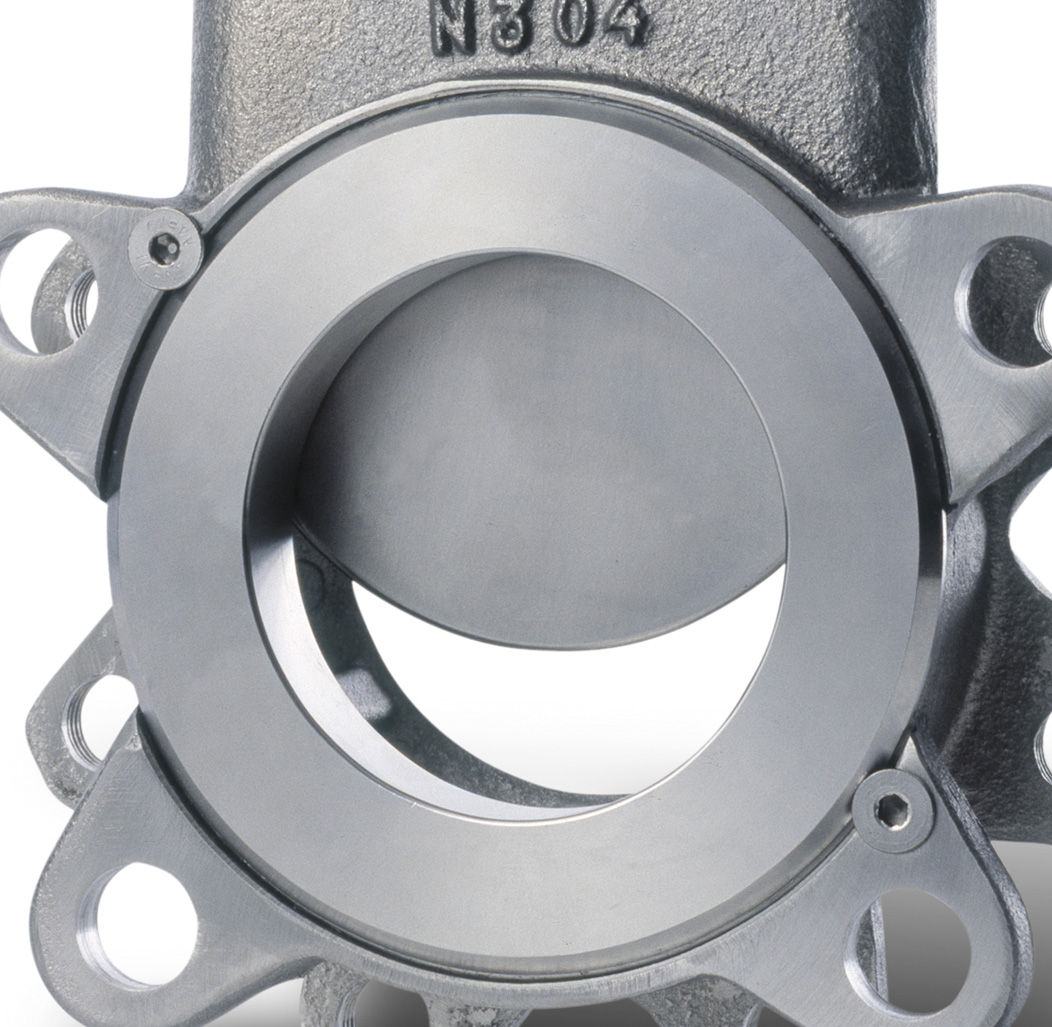

The TV valve is modular designed and it can easily be customized in materials to different process conditions. As standard it is available with a valve body in a stainless steel. Stafsjö’s retainer ring system offers great flexibility and several seat material options. The gland box system with TwinPack braids ensures that no media reaches the surrounding environment. It can also be reinforced with a box bottom scraper for demanding applications.

Download the product data sheet for additional technical information.

Specifications

Shut-off technique

Uni-directional

Valve seat material

EPDM

FKM/FPM

NBR

PTFE

PTFE FDA/EC 1935/2004

Connection type

Fully lugged

Valve body material

Stainless steel

Industries

Pulp and Paper
