Knife gate valve HP

Knife gate valve
HP

Reinforced high pressure version of the HG knife gate valve.

Available size range:

DN 300 - DN 900 (12″ - 36″)

Product data sheet:

Knife gate valve HP

Discover more

Product information

About HP

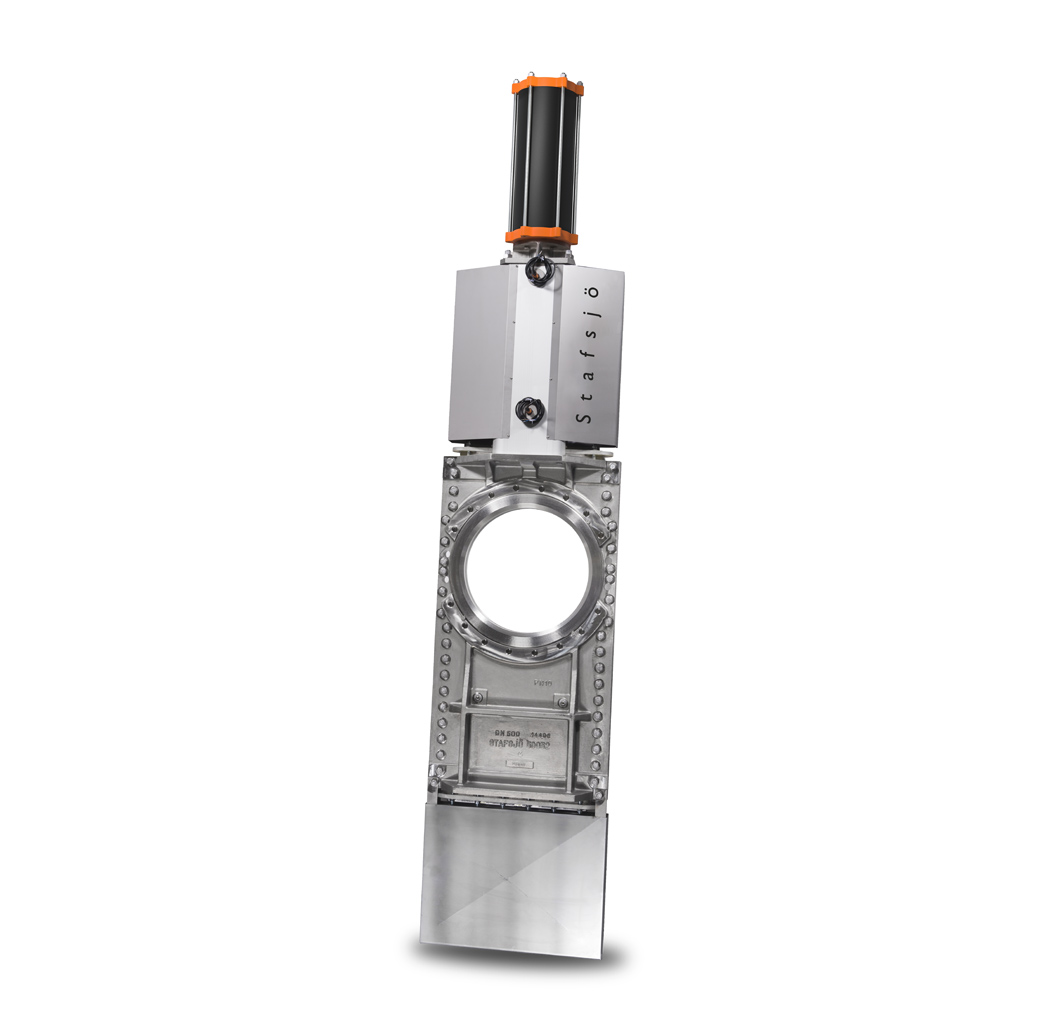

Stafsjö’s HP is a high pressure through-going knife gate valve with superior flow characteristics, offering reliable bi-directional zero leakage shut-off on highly concentrated media and static media columns.

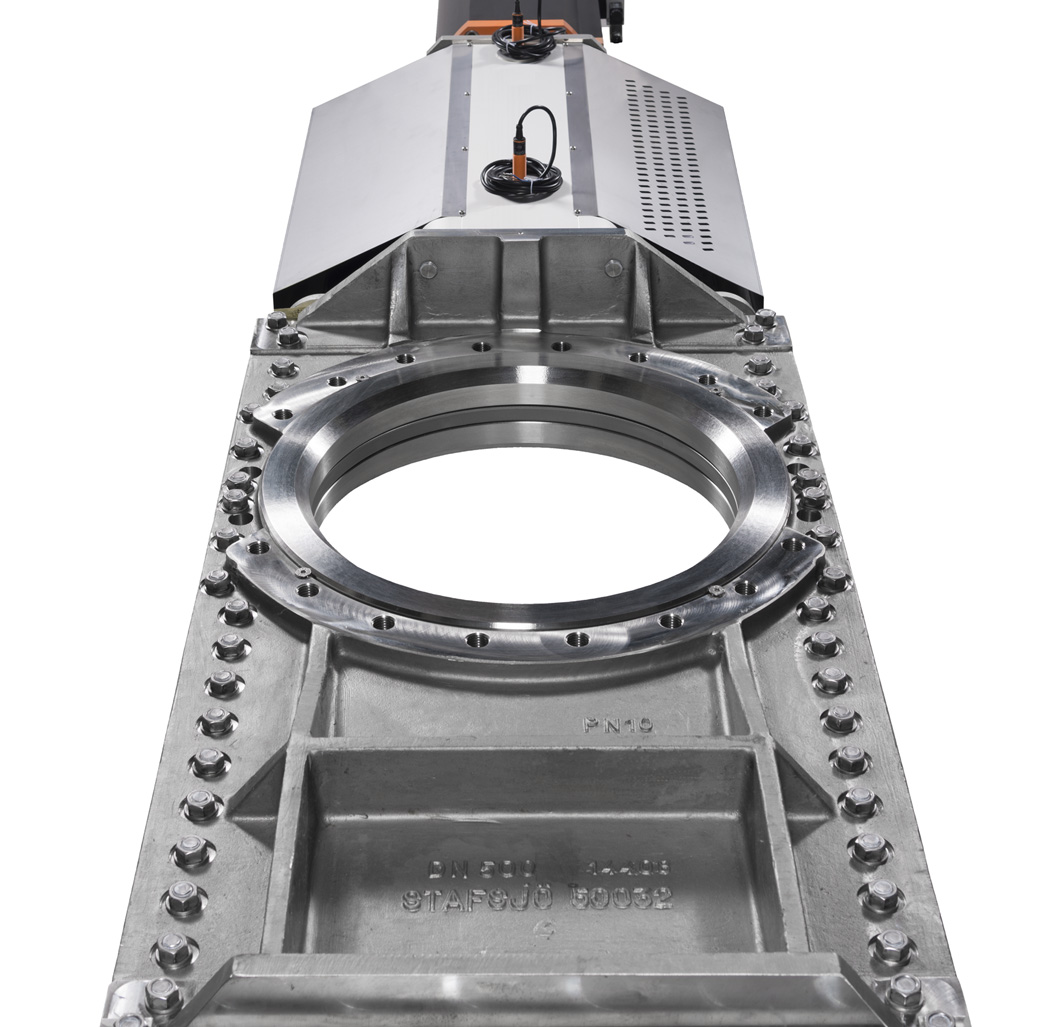

The knife gate valve HP can operate on different media such as pulp stock up to 18 % concentrations, liqour, ash and granulate. It is modular designed and can easily be customized in materials, with actuators and related automation accessories to different process conditions. The valve has a rigid two piece precision machined valve body with a high strength top works that provide an essential and precise gate alignment. As standard it is available with a valve body in stainless steel, but it can also be supplied in a range of high alloy materials such as Duplex and 254 SMO.

The HP valve is one out of five of Stafsjö’s through-going knife gate valves. HG is the standard version while the HL is a slim line version. HPT is a high pressure version entirely made in Titanium and the HX is an extreme high pressure version.

Specifications

Shut-off technique

Bi-directional

Through-going

Valve seat material

PTFE

Connection type

Wafer/Semi lugged

Valve body material

254 SMO equivalent

Duplex

Stainless steel

Industries

Chemical

Pulp and Paper

Product features
