Knife gate valve
SLF
Fully flanged push through heavy duty slurry knife gate valve.
Available size range:
DN 80 - DN 400 (3” - 16”).
Product data sheet:
Discover more
About SLF
Stafsjö’s wide body SLF is a push through slurry knife gate valve with superior flow characteristics, offering reliable and bi-directional shut-off performance in the most abrasive and demanding mineral processing applications.

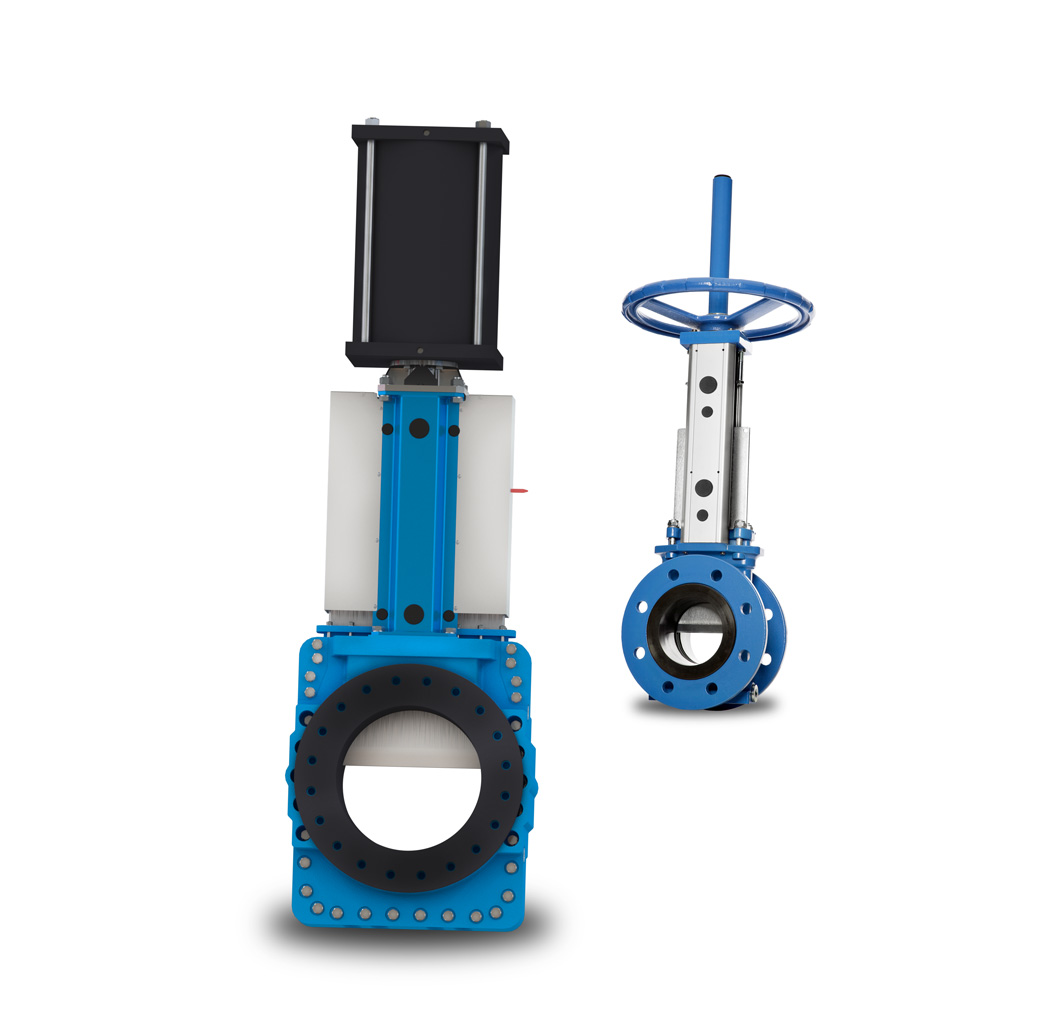

The SLF valve is modular designed and it can easily be customized with actuators and related automation accessories to different process conditions. The valve is also available with mechanical lock out. As standard, the SLF is supplied with a flanged robust and precision machined nodular iron valve body and a strong duplex stainless steel gate, which is also special grinded with purpose of reducing the friction when it cycles through the valve’s rubber seats.
In addition to this slurry valve Stafsjö also offers the compact SLV up to DN 900/36″ and two high pressure versions, the SLH and SLX, available in pressure rating up to 50 bar/725 psi.
Download the product data sheet for additional technical information.
Specifications
Shut-off technique
Bi-directional
Push-through

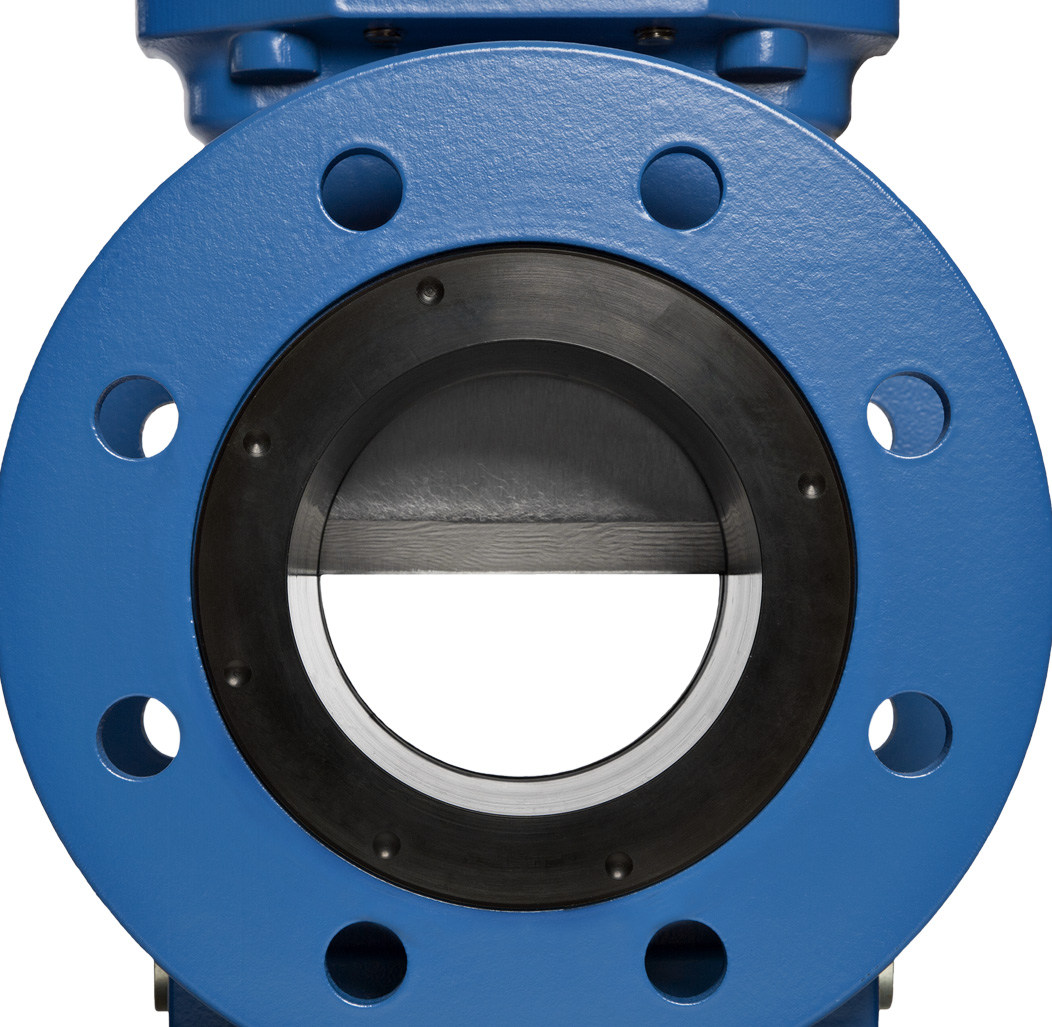

Valve seat material
EPDM
Natural rubber
Connection type
Flanged
Valve body material
Nodular iron
Industries
Mining
Power
Steel
Product features

A precise gate alignment extend the service life

Reinforcements rings ensure stability and performance

Expansion areas reduce stress and actuation force
